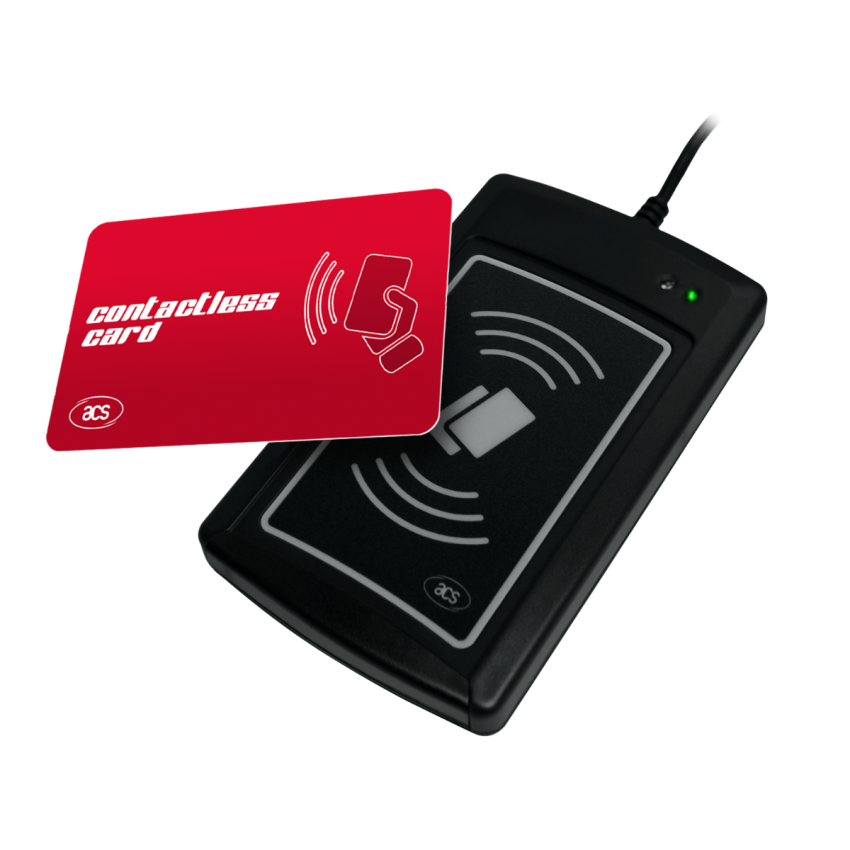

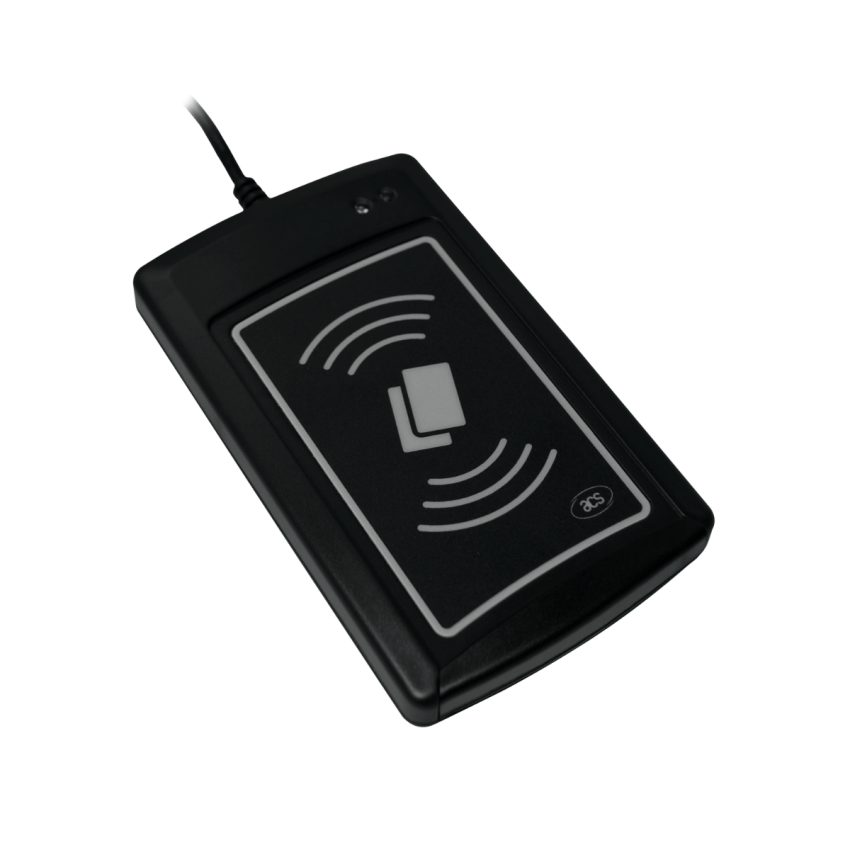

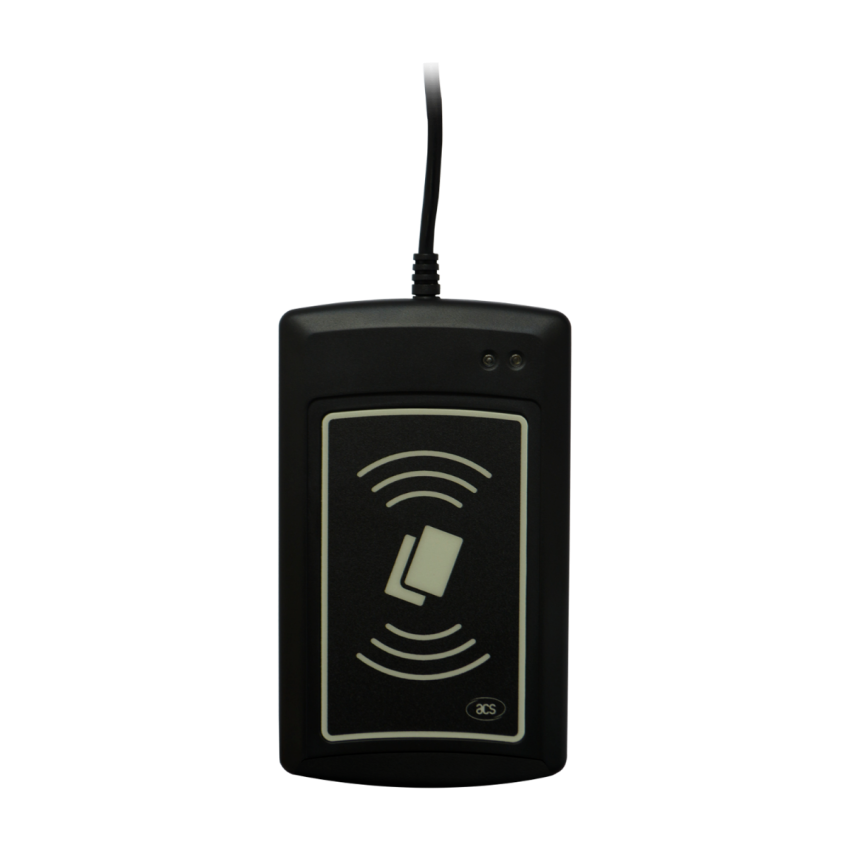

ACS ACR1281U-C2 USB NFC UID Reader
£36.00
ACR1281U-C2 Card UID Reader is a contactless card reader that automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card.
When presented with a contactless card (such as a MIFARE card), the ACR1281U-C2 retrieves the card’s UID and automatically returns it to the PC. The reader enables output of the UID directly to any editor, e.g. Notepad, MS Excel, MS Word, etc. With the UID, cardholders can be identified correctly in different applications, such as identity verification, time & attendance, and access control. ACR1281U-C2 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.
Because ACR1281U-C2 Card UID Reader is compliant with the Human Interface Device (HID) standard, it reduces driver installation issues during integration into PC environments. It can support most operating systems, including Microsoft® Windows, Linux and other embedded systems.
There is a configuration tool available on Windows that allows you confure the UID format when presented to the field. Here is a vidoe that explains.
You can download the technical specification HERE
A video showing out how it works HERE
Out of stock
SKU
5060326412043
Payment methods supported
ACR1281U-C2 Card UID Reader is a contactless card reader that automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card.
When presented with a contactless card (such as a MIFARE card), the ACR1281U-C2 retrieves the card’s UID and automatically returns it to the PC. The reader enables output of the UID directly to any editor, e.g. Notepad, MS Excel, MS Word, etc. With the UID, cardholders can be identified correctly in different applications, such as identity verification, time & attendance, and access control. ACR1281U-C2 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.
Because ACR1281U-C2 Card UID Reader is compliant with the Human Interface Device (HID) standard, it reduces driver installation issues during integration into PC environments. It can support most operating systems, including Microsoft® Windows, Linux and other embedded systems.
There is a configuration tool available on Windows that allows you confure the UID format when presented to the field. Here is a vidoe that explains.
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H) |
| Weight (g) | 140 g |
| USB Interface | |
| Protocol | USB HID Keyboard Class |
| Connector Type | Standard Type A |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 2.0 m, Fixed |
| Contactless Smart Card Interface | |
| Standard | ISO 14443 A & B Parts 1-4, MIFARE® |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL |
| Built-in Peripherals | |
| LED | 2 single-color: Red and Green |
| Buzzer | Monotone |
| Other Features | |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 14443 USB Full Speed USB-HID CE FCC RoHS |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® MAC OS® Android™ |
Custom products
The items on the shop come as seen whether clear, white or printed, but we create custom products for clients. Depending on the material it will determine the method used for printing as an example anything made from PVC or PET plastic whether flexible or hard can take full colour printing. Anything made from a hard plastic like ABS, PA6 or PPS can typically only use laser printing / engraving or screen printing that lends itself to serial numbers or a very simple one coloir design.
