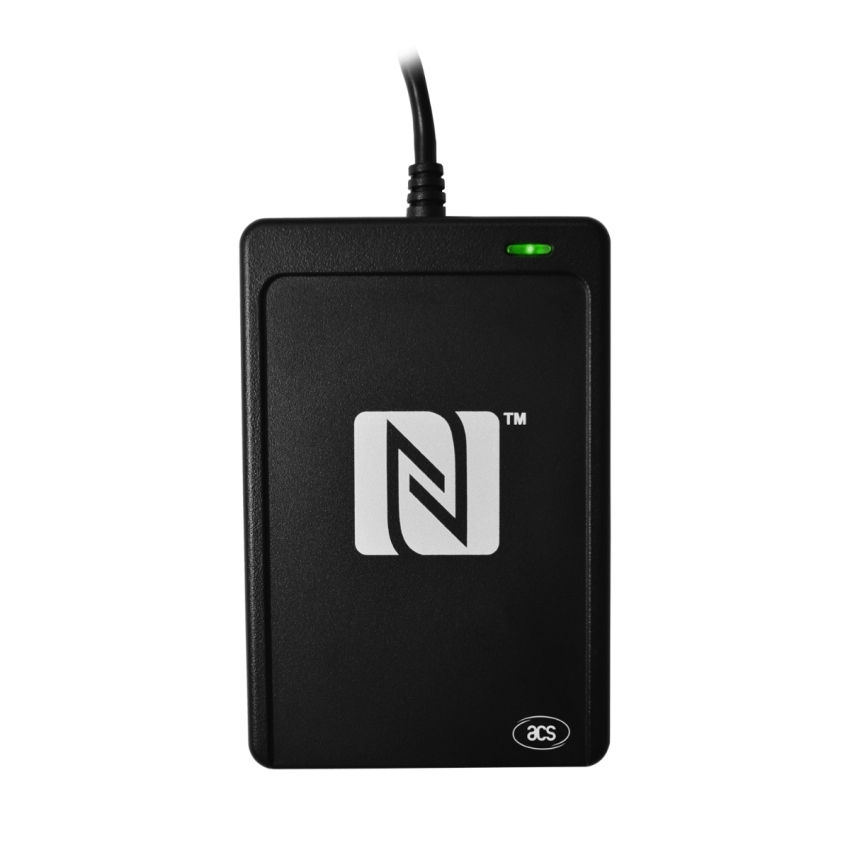

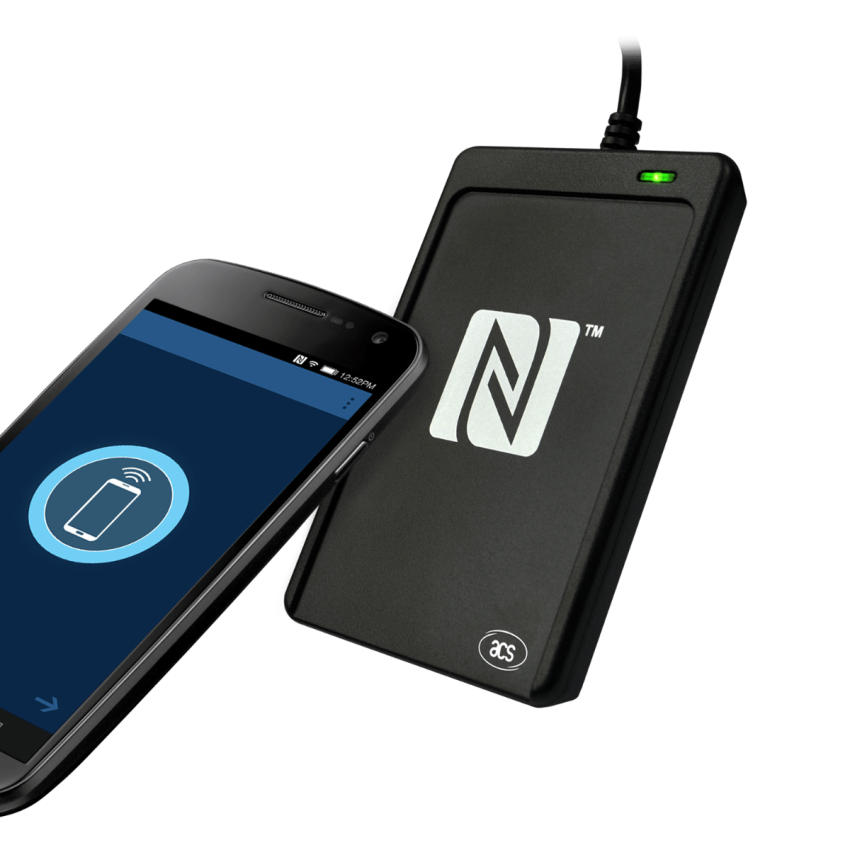

ACS ACR1252U USB NFC Reader / Writer

Availability: In stock

Only 98 left

  • Buy 5 for £46.80 each and save 3%
  • Buy 10 for £45.60 each and save 5%
  • Buy 50 for £42.00 each and save 13%

Newer version of the ACR122U with many additional features


USB 2.0 Full Speed Interface CCID Compliance USB
Firmware Upgradeability
Smart Card Reader: Read/write speed up to 424 kbps Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags Supports MIFARE 7-byte UID, MIFARE Plus and MIFARE DESfire
Built-in anti-collision feature (only 1 tag is accessed at any time) One ISO 7816–compliant SAM slot (Class A) NFC
Support: NFC Reader/Writer Mode Peer-to-Peer Mode Card Emulation Mode
Application Programming Interface: Supports PC/SC Supports CT-API (through wrapper on top of PC/SC)
Peripherals: User-controllable bi-color LED User-controllable buzzer SAM Slot

+
-

SKU: 5060326412388

Categories: Other, NFC Reader / Writer

Information

  • Newer version of the ACR122U with many additional features
  • USB 2.0 Full Speed Interface CCID Compliance USB
  • Firmware Upgradeability
  • Smart Card Reader: Read/write speed up to 424 kbps Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
  • Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags Supports MIFARE 7-byte UID, MIFARE Plus and MIFARE DESfire
  • Built-in anti-collision feature (only 1 tag is accessed at any time) One ISO 7816–compliant SAM slot (Class A) NFC
  • Support: NFC Reader/Writer Mode Peer-to-Peer Mode Card Emulation Mode
  • Application Programming Interface: Supports PC/SC Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals: User-controllable bi-color LED User-controllable buzzer SAM Slot

These are not supplied with any software but the more advanced buyers can download the sdk and or use standard Java libraries to interact with the device. A copy of the API document can be found here . More information on this product in including access to software ACS

If you are not a software developer we do highly recommend you look at Wak Dev's software package NFC Tools for desktop as they have a version for the main platforms Windows, Apple Mac and Linux and it is compatible with this device.  It is very easy UI for reading tags and writing standard information like text and URLs.



Technical Spec

  • Dimensions 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
    Weight 81.0 g
    Compliance / Certifications
    • ISO 18092, ISO 14443, ISO 7816,  NFC Forum, FeliCa Performance Certification, PC/SC, CCID, LASCOM, EN60950/IEC 60950, CE, FCC, VCCI, MIC, KC, RoHS 2, USB Full Speed, Microsoft® WHQL
    Interface USB 2.0 Full Speed
    Operating Distance Up to 50 mm (depends on the tag type)
    Supply Voltage Regulated 5V DC
    Supply Current Max. 200mA
    Operating Temperature 0-60 °C
    Operating Frequency 13.56 MHz
    Smart Card Interface Support
    • ISO 14443 Type A & B
    • MIFARE
    • FeliCa
    • 4 types of NFC (ISO/IEC 18092) tags
    Operating System Support
    • Windows®
    • Linux®
    • Mac OS®
    • Android™ 3.1 and above
